HX EFFECTS Wireless MIDI Controller (iPad) V1.1 [Aug 2021 Updated]

This is a Premium MIDI Layout made for Line 6 HX EFFECTS devices.

Requires MIDI Designer Pro 2 (IOS app, sold separately)

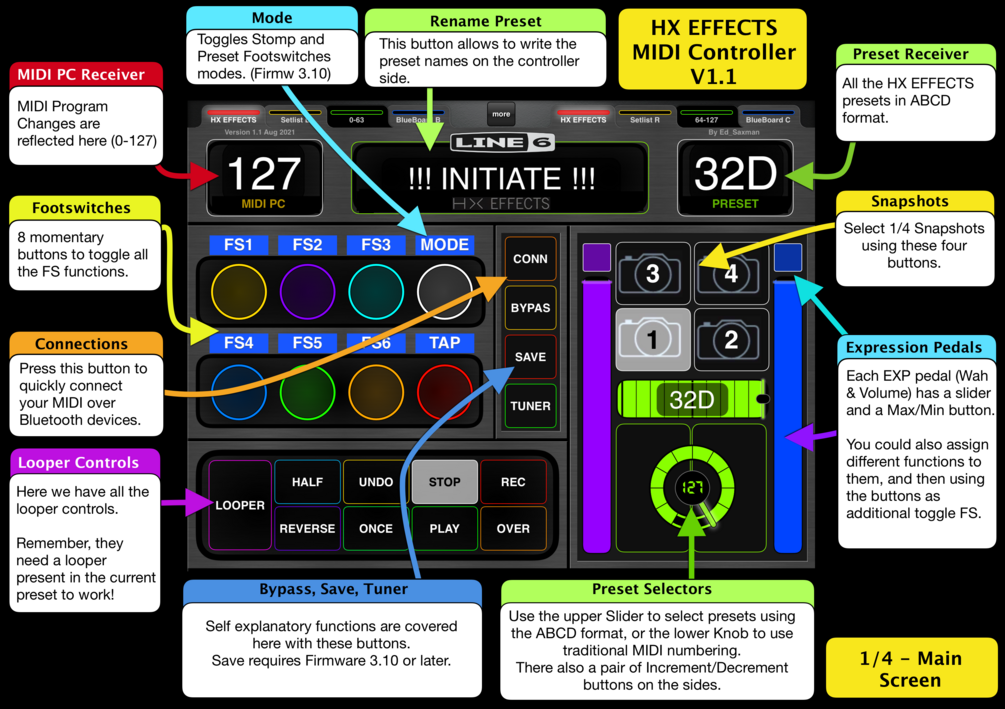

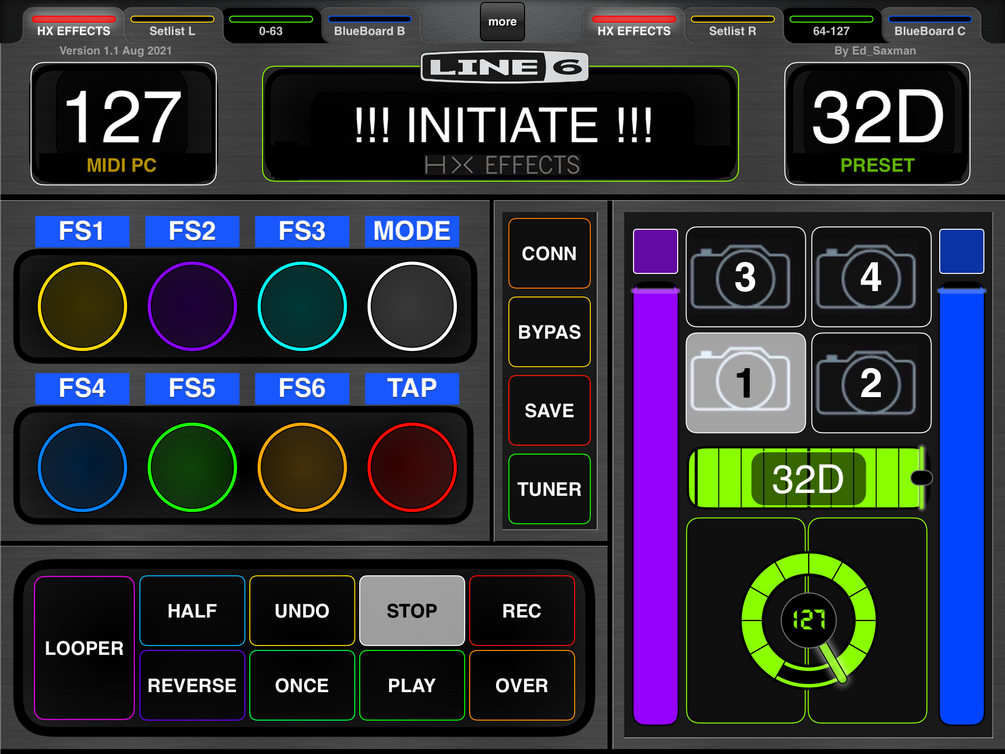

Provides full tactile control over your HX EFFECTS using Bluetooth or USB.

Embedded support for the iRig Blueboard Series (two units simultaneously)

Features:

• Includes all the HX EFFECTS MIDI implementation based on the current firmware.

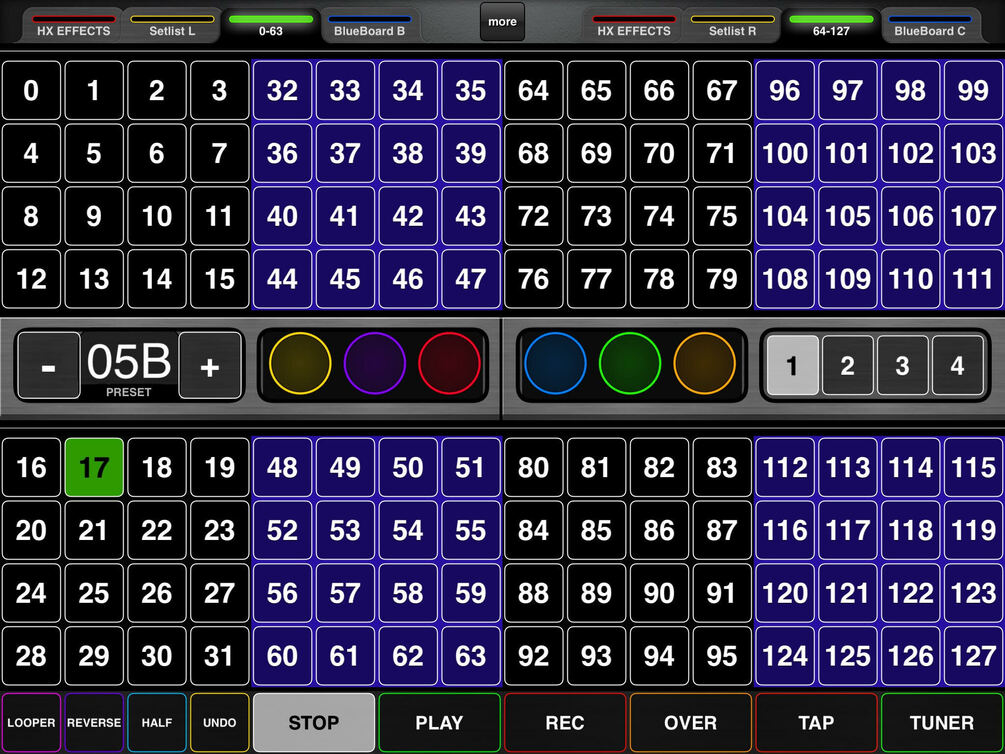

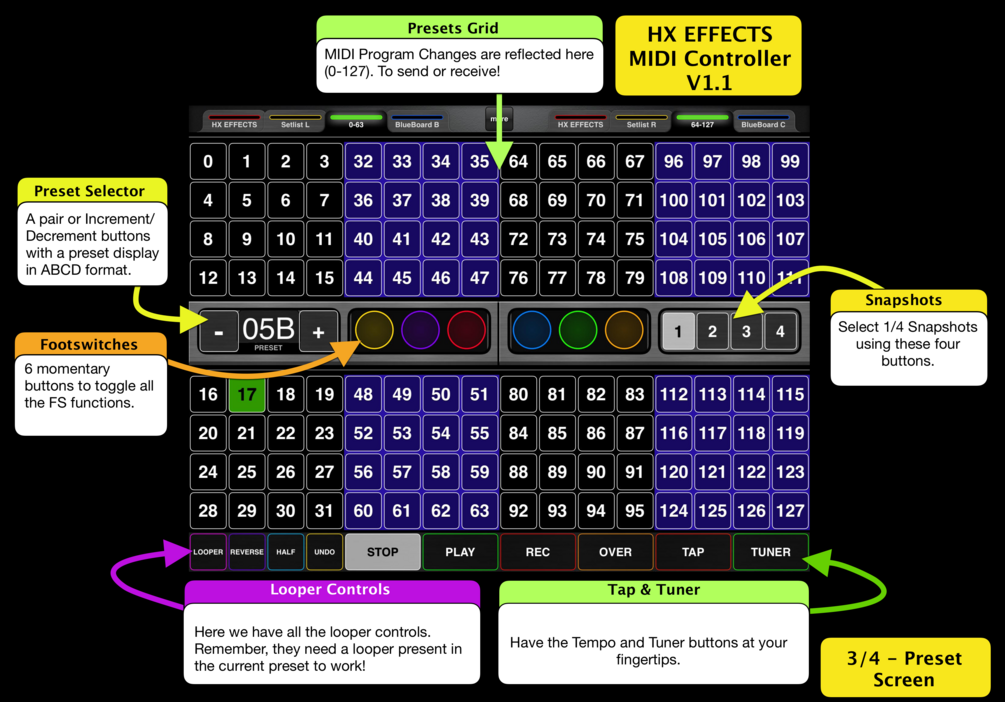

• Shows both standard MIDI Program Changes numbering (0-127) and ABCD format (32X4)
• Allows to Rename Presets on the controller side.

• Saves your spine! Almost any usual operation can be done from the controller side, and provides many advanced features almost impossible to replicate with a physical controller (unless you use a very big one)
• Wireless option: connect a Yamaha MD-BT01 or a CME WIDI Master to your HX EFFECTS and begin to enjoy a tangle-free life.

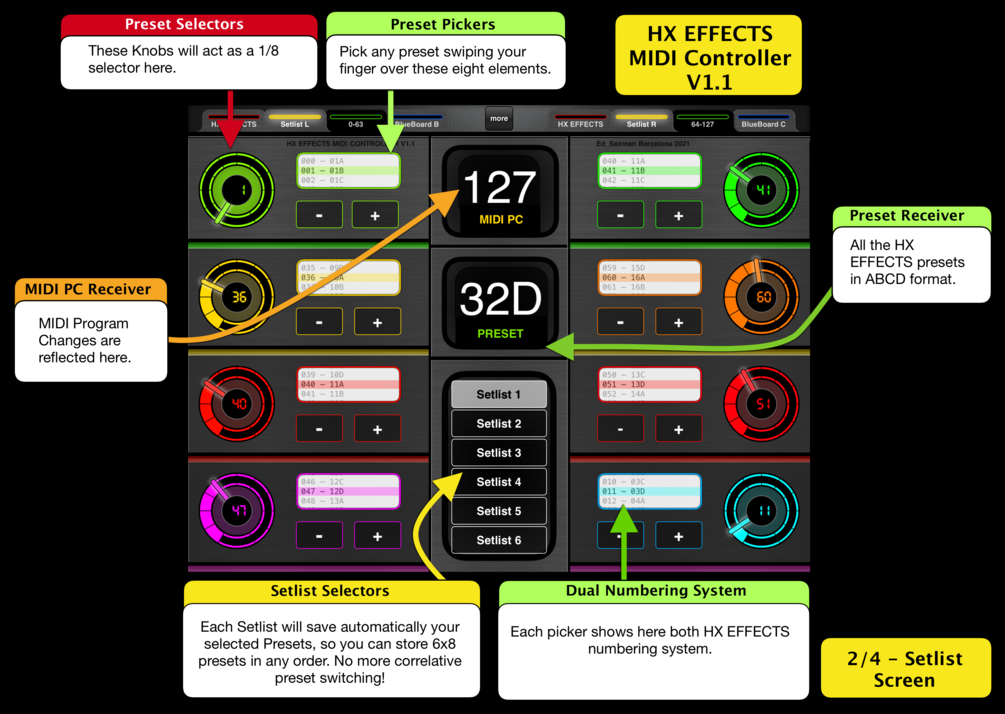

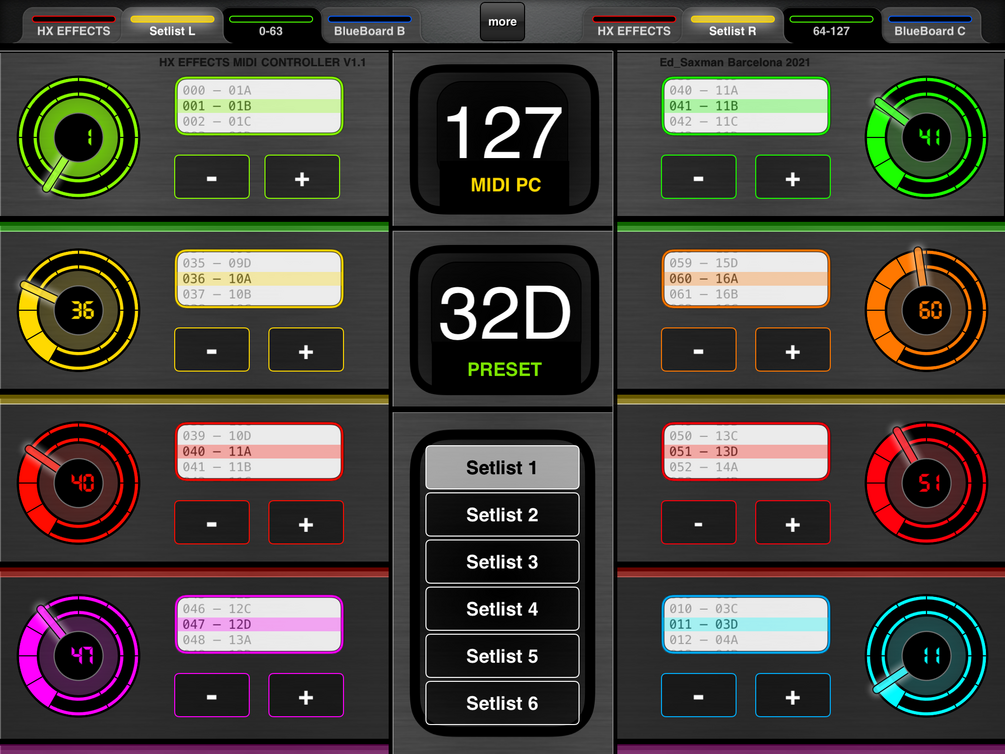

• User Setlist: Store up to 6 user setlist, containing 8 non-correlative presets and switch easily between them.
• Embedded support for the iRig BlueBoard: 100% Plug&Play! Preconfigured and ready to use. Two units can be used simultaneusly!


Hardware requirements:

• HX EFFECTS
• MIDI Designer Pro 2 (IOS)
• iPad
• MIDI Interface (Yamaha MD-BT01 for wireless, or Apple Lightning to USB3 Camera Adapter for wired)

Recommended MIDI Interfaces:

• Wireless: Yamaha MD-BT01, CME WIDI Master
• Wired (using Helix USB): Apple Lightning to USB3 Camera Adapter
• Wired (MIDI to USB): Roland UM-ONE MKII + Apple CCK USB3

Optional support (included):

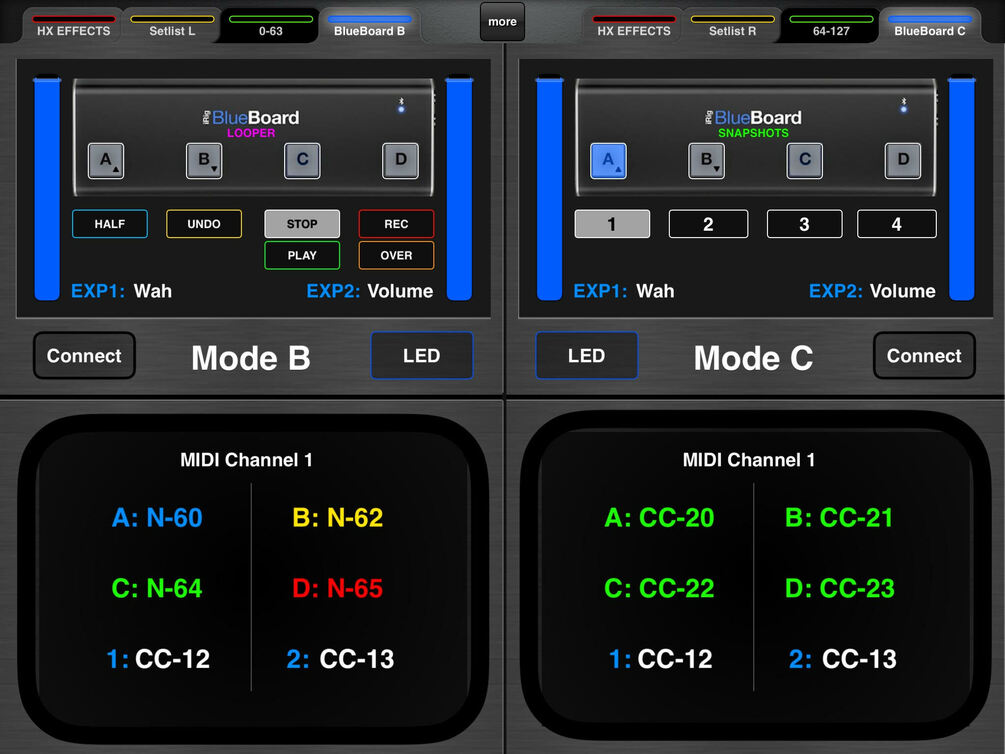

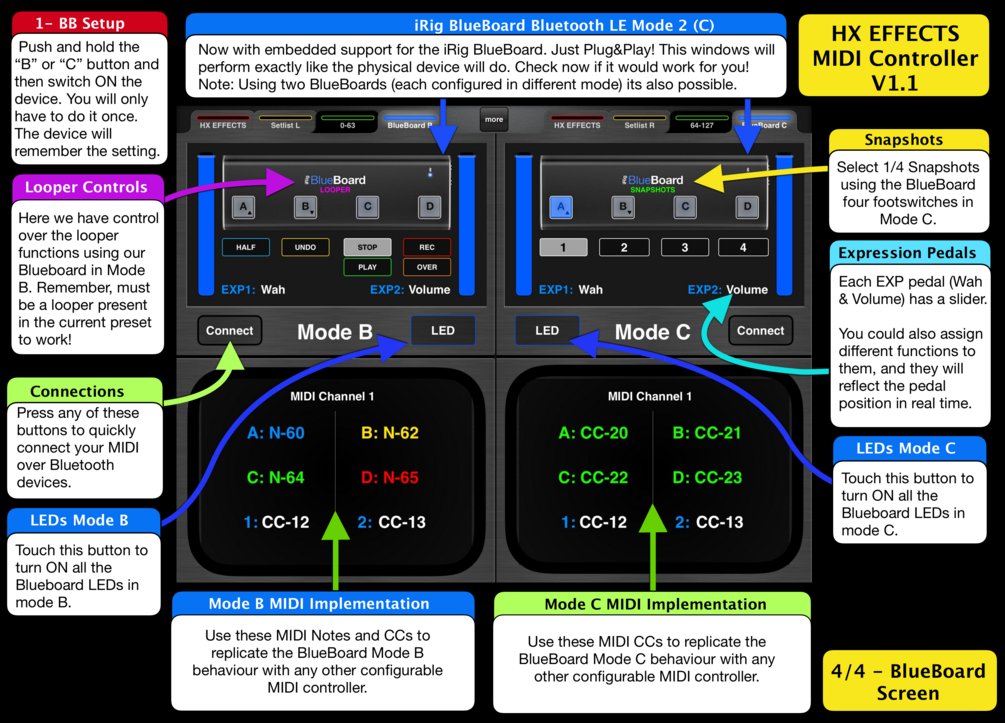

• Embedded support for the IK Multimedia BlueBoard Bluetooth LE Modes:

Mode B: (Half/Full speed, Undo/Redo, Play/Stop, Rec/Overdub)

Mode C: (Snapshots 1-4)

• Two BlueBoard units can be used simultaneusly (using modes B & C)

• Includes buttons to turn ON all the Blueboard LEDs!
• Includes a small MIDI implementation to replicate the BlueBoard behaviour using any other bluetooth pedalboard (Airturn, Airstep, etc)


Changes Log:

1 August 2021 - 1.1 Update

• Save and Mode buttons added (requires firmware 3.10 or later)
• Preset pickers in Setlist View now includes color highlights
• Bidirectional Looper MIDI commands fixed

20 December 2020 - v1.0 Released!
