ROLAND FC-300 SYSEX MODE FOR HX STOMP (iPad) v2.0

This is a MIDI Layout Made to work with MIDI Designer Pro 2 (sold separately).

Allows to use a Roland FC-300 MIDI pedalboard with the Line 6 HX STOMP, using SYSEX messages to control all the onboard LEDs, expression pedals and footswitches.

Plug & Play. No config needed.

All Wireless! Using a pair of CME WIDI MASTER, both the FC-300 and the HX STOMP connects with the iPad to control your HX Stomp Wirelessly!

Requires some aditional hardware. Please read carefully the following requeriment list.

Covering the entire Roland FC-300 SYSEX specification plus the HX STOMP MIDI implementation to make them work seamlessly together.

All Plug&Play! Does not require any user configuration.

More than 1000 lines of Stream Byter code!

About 100 hours of single man work!

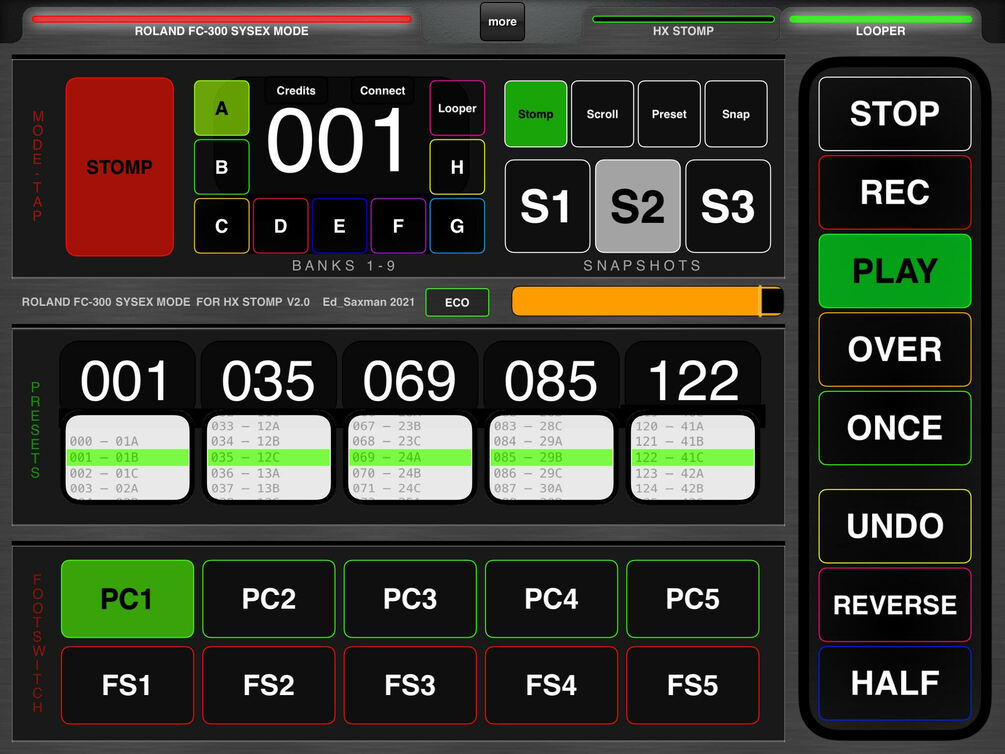

Full control over the Roland FC-300 onboard LEDs, 3-Digit Screen (showing preset numbers), LCD Screen (2 x 16 characters), and both Expression pedals, all synced with your HX STOMP!

Requeriments:

• Line 6 HX STOMP
• Apple iPad + MIDI Designer 2 + this MIDI Layout
• Roland FC-300
• A pair or MIDI interfaces (one for each device)

Recommended MIDI Interfaces:

Wireless:

• 2X CME WIDI MASTER (two units) OR... a Yamaha MD-BT01 AND a CME WIDI MASTER (the Yamaha doesn't work for the FC-300, but it does for the HX Stomp)

• Roland UM-ONE MIDI Interface (connected to the FC-300, then to the Apple Lighning to USB3 camera adapter)
• Apple Lightning to USB 3.0 camera adapter
• CME WIDI MASTER or Yamaha MD-BT01 Wireless MIDI Interface (connected to the HX Stomp)

Making connections:

Wireless:

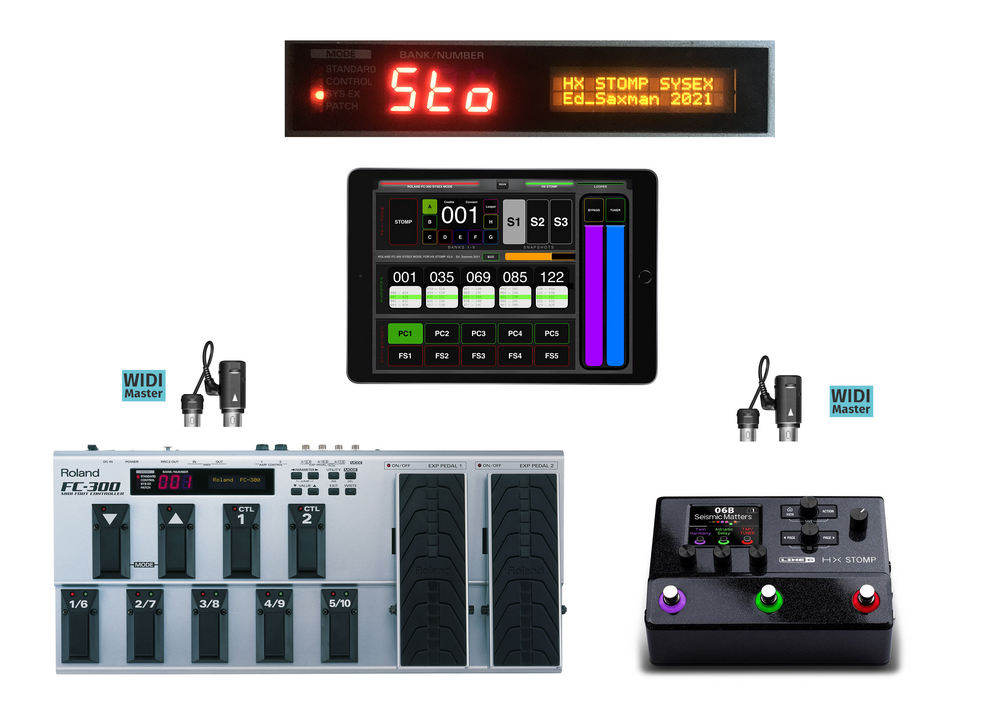

• Connect both MIDI-BT devices to the FC-300 and the HX STOMP. Then stablish connections with your iPad using the "Connect" button.

Wired:

• Connnect the Roland UM-ONE MIDI DINs (In, Out) to the Roland FC-300, then plug the USB to the Apple Lighning to USB 3.0 camera adapter, plugged to your Ipad.
• Plug your MIDI BT interface to your HX Stomp, then use the "Connect" button to stablish wireless connection.

Features:

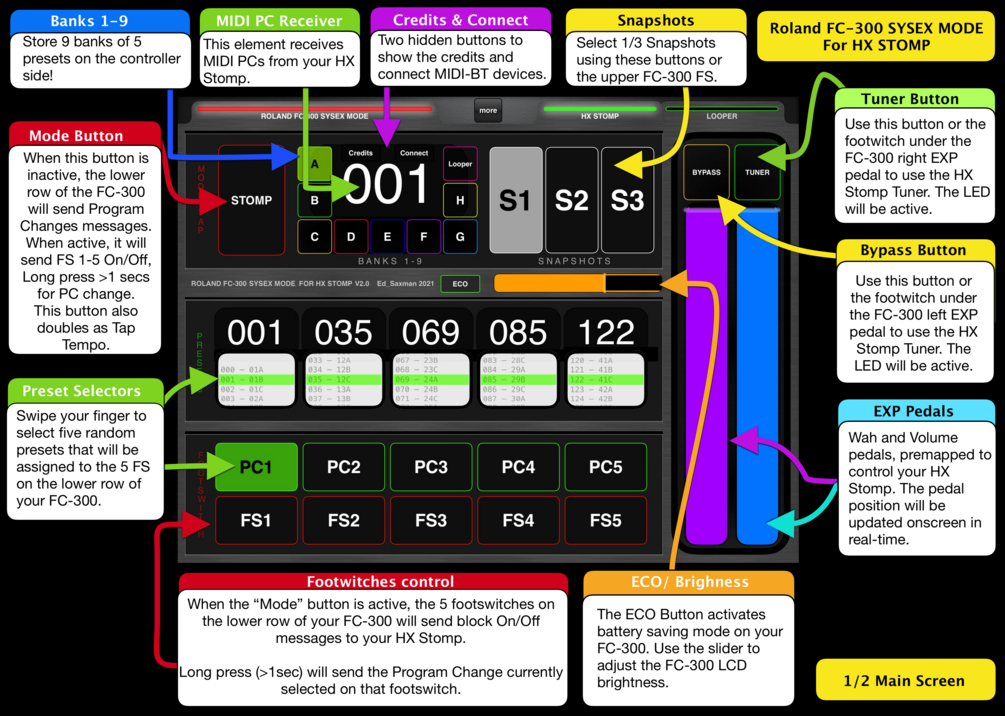

• Premapped SYSEX Mode to make both devices work seamlessly together.
• Control over all the presets on the FX STOMP (125)

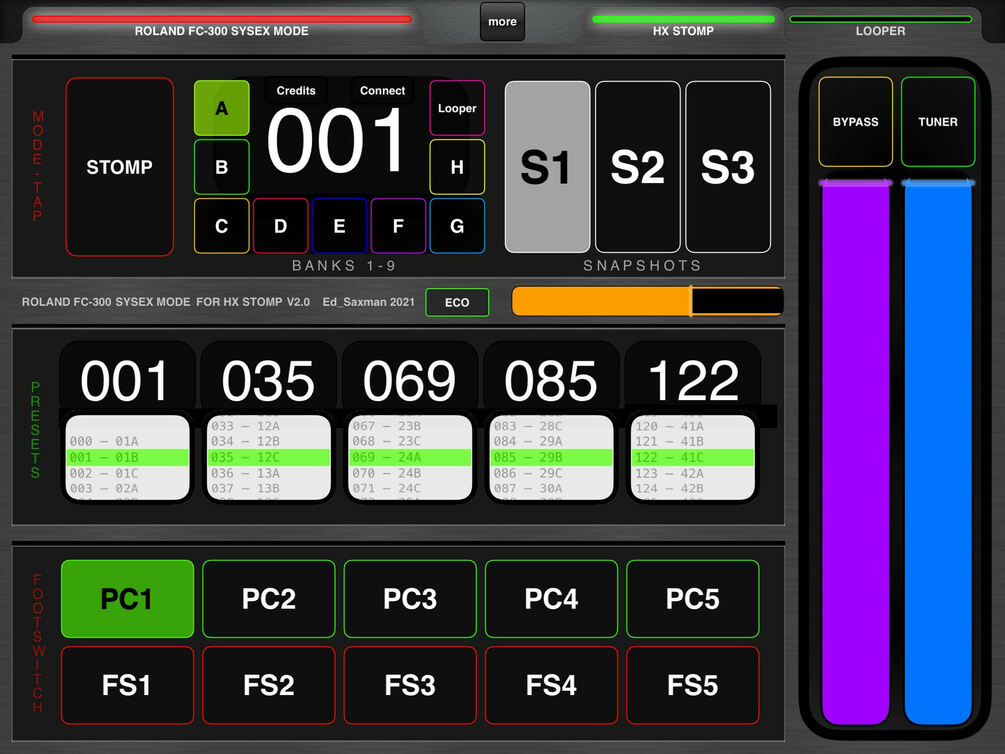

• Expression Pedals with real-time movement on the iPad screen.

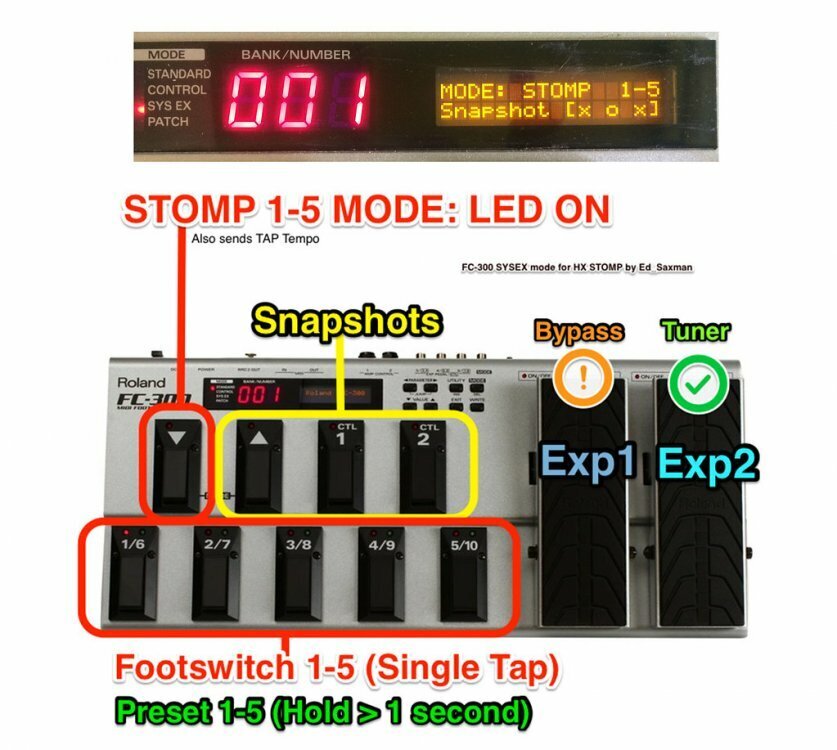

• Bypass and Tuner functions assigned to the Footswitches under the Exp pedals (including On/Off LEDs)
• 3 FS assigned to Snapshots (1/3 LEDs active)

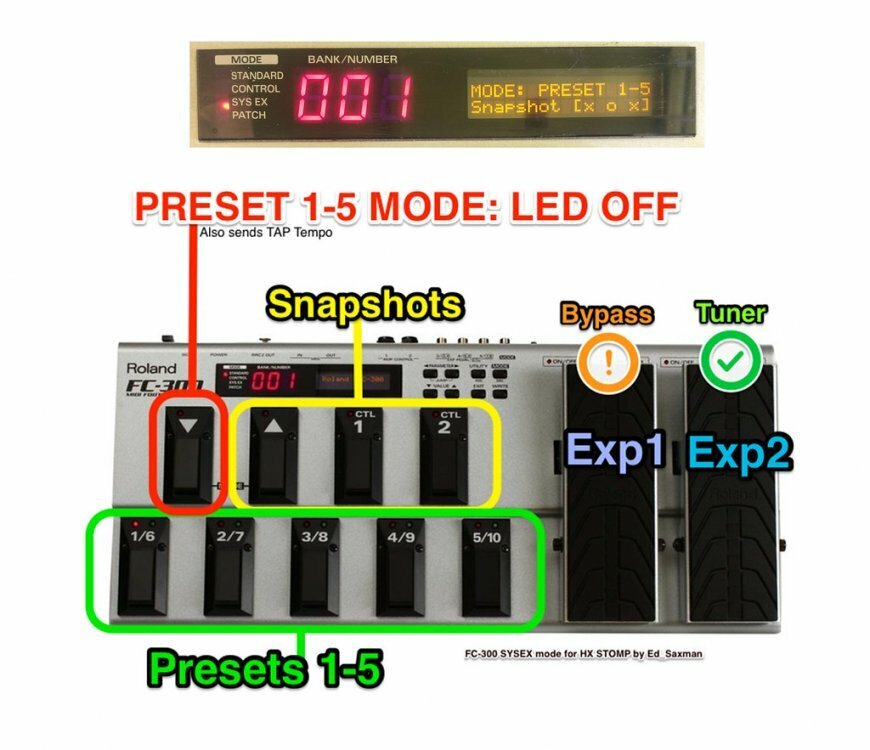

• One FS to Switch Stomp and Preset Modes, that also works as Tap Tempo.
• 5 FS (lower row on the FC-300) with double function: single press to turn On/Off effects, Long Press to change presets 1-5 (Internal memory for 9 banks X 5 Presets)

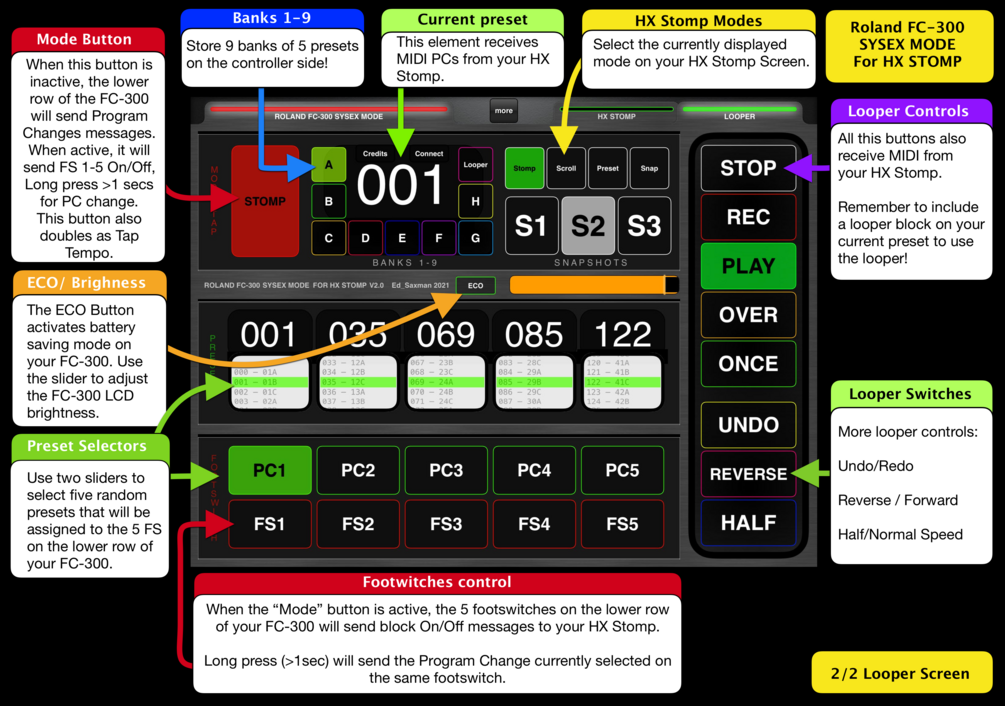

• Looper Controls onscreen
• Control over the FC-300 screen brightness and ECO mode.
• V2 Improvements:
• Selectors for each of the 5 footswitches dedicated to program changes
• Memory for 9 internal "Banks" (so, 9x5 presets)
• Four buttons for the HX Stomp modes included in the Looper view
• New "Credits" and "Connect" buttons

Version 2.0 - JAN-24-2021

Version 1.0 - MAY-24-2020

Future versions may include additional features. All updates will be free for current costumers.
